Welch Allyn

Welch Allyn 3.5 V Rechargleable Halogen HPX Diagnostic Set including Coaxial Ophthalmoscope

Welch Allyn 3.5 V Rechargleable Halogen HPX Diagnostic Set including Coaxial Ophthalmoscope

Regular price $721.37 CAD
Regular price Sale price $721.37 CAD
Sale Sold out

Pay in installments with

AVAILABLE TO BACKORDER - Buy now for dispatch when stock arrives.
  • SKU: 97201-MC
  • GTIN: 00732094103298

Why buy from Stethoscope.ca?

Stethoscope.ca supplies medical professionals, medical centers, medical/nursing students, businesses and home users.

  • No minimum order
  • Wide range of payment types accepted
  • No delay Laser Engraving
  • Choose shipping from UPS, Canada Post
  • Tracking by email and SMS.

Need some advice? Speak to our friendly team on 1-877-301-0047

View full details

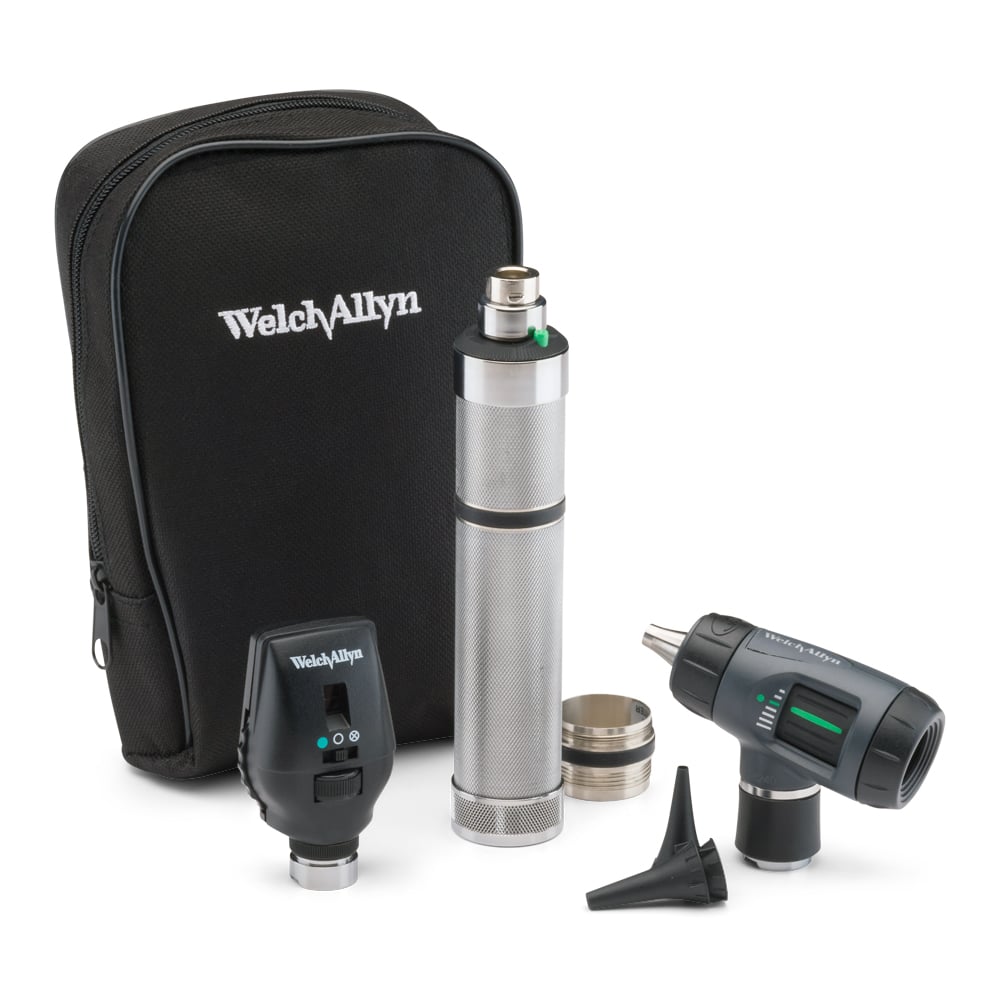

Welch Allyn 3.5 V Halogen HPX Diagnostic Set including

  • Coaxial Ophthalmoscope (#11720)
  • MacroView Otoscope with Throat Illuminator ( #23820)
  • Rechargeable 60-Minute Power Handle(s) -- C-Cell Convertible
  • Soft Storage Case
  • C-Cell Battery Converter Accessory; Nickel-Cadmium (#72300) Battery; IEC Plug Type-A

23820 | MacroView™ Otoscope

  • 30% greater magnification and twice the field of view of a conventional otoscope give a large, almost complete view of the tympanic membrane.
  • Focusing wheel enabling you to zoom in or out on the area in view without the need to move the otoscope, compensating for both the practitioner's vision and variable length of the patient's ear canal.
  • Better clarity and definition of landmarks than a conventional otoscope.
  • The Halogen HPX™ lamp provides light output for true tissue colour and consistent, long-lasting performance.
  • Fibre optics produce a ring of cool light with no reflections or obstructions for glare free viewing and easier examination.
  • Specula ejector for hygeinic touch-free disposal of used speculae.
  • Insufflation port for manipulation of the tympanic membrane.
  • A sealed system for pneumatic otoscopy and accurate diagnosis of otitis media.
  • Variable illumination strength via the handle rheostat dial.
  • Throat illuminator provides light via a handy built-in penlight.
welch allyn macroview otoscope with halogen and fibre-optics
Halogen + Fibre Optics

360° ring of light allows a completely unobstructed view in true tissue colour.
welch allyn macroview otoscope with rheostat control
Rheostat Control

Vary the power of illumination with the smooth turn of a dial.
welch allyn macroview otoscope with a wide-angle viewing lens
Wide-angle Viewing Lens

With twice the field of view of a conventional otoscope.
welch allyn macroview otoscope with insufflation port for pneumatic otoscopy
Insufflation port

Attach an insufflation bulb to test the mobility of the tympanic membrane via pneumatic otoscopy.
welch allyn macroview otoscope with smooth focus wheel
Focus Wheel

Turn to smoothly focus without the need to move the device.
welch allyn macroview otoscope with specula ejector
Specula Ejector

Twist the Tip Grip to fasten or eject specula.
welch allyn macroview otoscope with throat illuminator
Throat Illuminator

Two part head includes a built in penlight for direct illumination.


11720 | Coaxial Ophthalmoscope

  • LED light for true tissue colour and consistent, long-lasting performance.
  • The coaxial optics produce a shadow-free spotlight, easier entry into undilated pupils and a larger field of view compared to standard ophthalmoscopes.
  • 6apertures:
    • Micro Micro - allows quick entry into small, undilated pupils.
    • Medium Small - provides excellent view of fundus through an undilated pupil.
    • Large Large - general examination of the eye through dilated pupil.
    • Fixation Fixation - graduated cross-hairs for measuring eccentric fixation or locating lesions.
    • Slit Slit - used to determine levels of lesions and tumors.
    • Cobalt Free Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
  • 2 filters can be used in conjunction with any of the above apertures:
    • Red Free Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
    • polarising filter Polarising filter - virtually eliminates corneal reflection.
  • 28 focusing lenses with a range of -25 to +40 diopters, adjustable via easy-to-reach maywheel.
  • Rubber brow-rest prevents scratching of eyeglasses.
  • Variable illumination strength via the handle rheostat dial.
welch allyn coaxial ophthalmoscope with rheostat control
Rheostat Control

Vary the power of illumination with the smooth turn of a dial.
welch allyn coaxial ophthalmoscope with aperture selection disc
Aperture Selection Disc

Switch easily between 6 apertures via a disc on the head.
welch allyn coaxial ophthalmoscope with six apertures
Six Apertures

A wide range of practical apertures to select from.
welch allyn coaxial ophthalmoscope with lens selection disc
LENS Selection Disc

Focus on the fundus, cornea, iris and other ocular structures.
welch allyn coaxial ophthalmoscope with two additional filters
Two Filters

Red-free or polarising filter can be used in tandem with any aperture.
